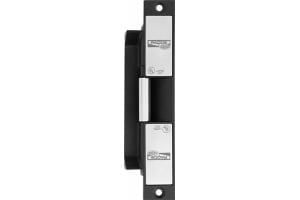

Electric Strike ES200



The ES200 series electric strikes are high security products manufactured from stainless steel and designed for use with all access control systems. The strikes are suitable for use with hinged doors which require either fire or security control as part of a building management system.

These strikes are flexible and can be changed from fail safe to fail secure, mounted on the left or right hand side of the door and are available in 12 or 24Vdc.

They offer a strong, dependable and long-lasting electric strike solution.

Key Features

Fail safe/fail secure changeable on site
High security
4 Hour fire rating
850kg holding force
1 million cycles endurance rating
Cast stainless steel body
Stainless steel locking pins
Low Current consumption – Max 175mA @12Vdc
Mounting kit supplied as standard
TRICARE® 5 Year Warranty

High traffic areas
Fire rated door sets
Open in/open out doors
Suitable for use with all access control systems
Standards and Compliance

S3 (Security) Australian Lock Standard (AS4145.2.1993)
D3 (Durability) Australian Lock Standard (AS4145.2.1993)
BS 5872 Approved
Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005 (Part 1: Fire resistant door sets)
Approved to UL1034 (highest level)
CE Approved
C-Tick Certified
